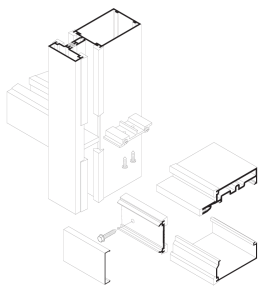

1600 PowerWall® Curtain Wall System

The 1600 PowerWall® is the first integrated curtain wall that can harness the power of sunlight. It is a reliable, environmentally friendly energy source that is aesthetically desirable. Designed specifically for integrating with curtain wall products, the 1600 PowerWall® is easy to install and maintain.

  • 2-1/2″ (63.5mm) sightline
  • 6″ (152.4mm), 7-1/2″ (190.5mm) or 10″ (254mm) depth
  • High thermal performance
  • Building-integrated photovoltaics (BIPV) panel produces energy
  • A reliable source of energy without moving parts that is silent, easily installed and maintained
  • Reduces both energy purchase requirements, carbon and overall environmental footprint
  • Polycrystalline and thin-film PV laminates typically provide at least 90% of rated power for 10 years and 80% for 20 years
  • Fully compatible with Kawneer’s range of inside/outside glazed 1600 Wall Systems®
  • Can be incorporated into vertical and sloped glazing applications
  • Available in a range of sizes compatible with building requirements
  • Installed with standard glazing procedures and equipment

Thermal Technology

Find out more here.

1600 PowerWall® Curtain Wall System - Architectural Detail Manual
115 KB
1600 PowerWall® Curtain Wall System - Flyer
1 MB
Anodized and Painted Aluminum Extrusions - EPD
765 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
794 KB
Liquid Paint - Color Chart - Permafluor™
350 KB

Download All
Vertical and Horizontal Details
Download All
1600 PowerWall™ Curtain Wall System
1600 PowerWall™ Curtain Wall System

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
