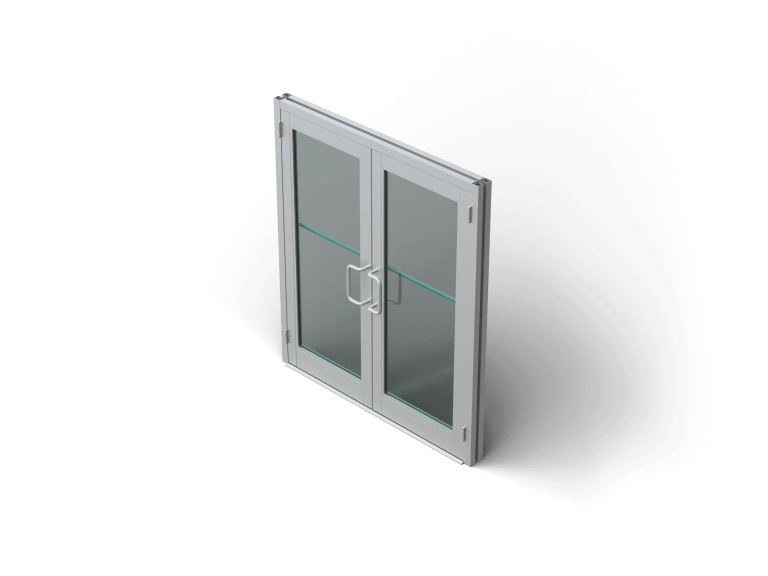

350/500 Heavy Wall™ IR Entrances

Rigorously tested to protect against the forces of nature and human-directed attacks, these doors are ideal for building codes in coastal areas and buildings with blast mitigation requirements.

  • 3-1/2″ (88.9mm) or 5″ (127mm) sightline
  • 2″ (50.8mm) depth
  • Non-thermal performance
  • Blast mitigation, hurricane resistance
  • Moderate- to high-traffic application
  • 350 medium stile has 3-1/2″ (88.9mm) vertical stile, 3-1/2″ (88.9mm) top and 6-1/2″ (165.1) bottom rail
  • 500 wide stile has 5″ (127mm) vertical stile, 5″ (127mm) top and 6-1/2″ (165.1mm) bottom rail
  • Door is 2″ deep
  • Door has 3/16″ wall thickness
  • Welded corner construction
  • Single-acting
  • Offset pivot, butt hinges or continuous geared hinge
  • Surface mounted or concealed closers
  • MS lock or exit device hardware
  • Architect’s Classic push/pulls
  • Square stops with interior silicone seal for 9/16″ (14.3 mm) or 1″ (25.4 mm) glazing infills
  • Adjustable astragal utilizing pile weathering with polymeric fin at meeting stiles
  • Polymeric bulb weatherstripping in door frames
  • Permanodic™ anodized finishes in seven standard choices
  • Painted finishes in standard and custom choices

Optional Features

  • Numerous push/pull options
  • Paneline™ exit device or Paneline™ EL exit device
  • 3/16″ heavy wall frame
  • Crossrails and 10″ bottom rail
  • Square stops with 3M™ VHB™ Structural Glazing Tape
  • Glazing tape at interior for 9/16″ (14.3 mm) or 1″ (25.4 mm) glazing infill

Product Applications

  • 350/500 Heavy Wall IR provides added strength for schools, institutions, office buildings and other high-traffic applications where codes require windborne debris or blast mitigating protection.

Related Product Approvals

Find out more here.

Hardware

Kawneer offers a wide variety of entrance hardware to meet your specific job needs:

  • Pivots and Hinges
  • Locks and Latches
  • Exit Devices
  • Door Closers
  • Thresholds
  • Push/Pull

Thermal Technology

Find out more here.

Blast Resistant

Find out more here.

Hurricane Resistant

Find out more here.
