Double Pane

Curtain Wall

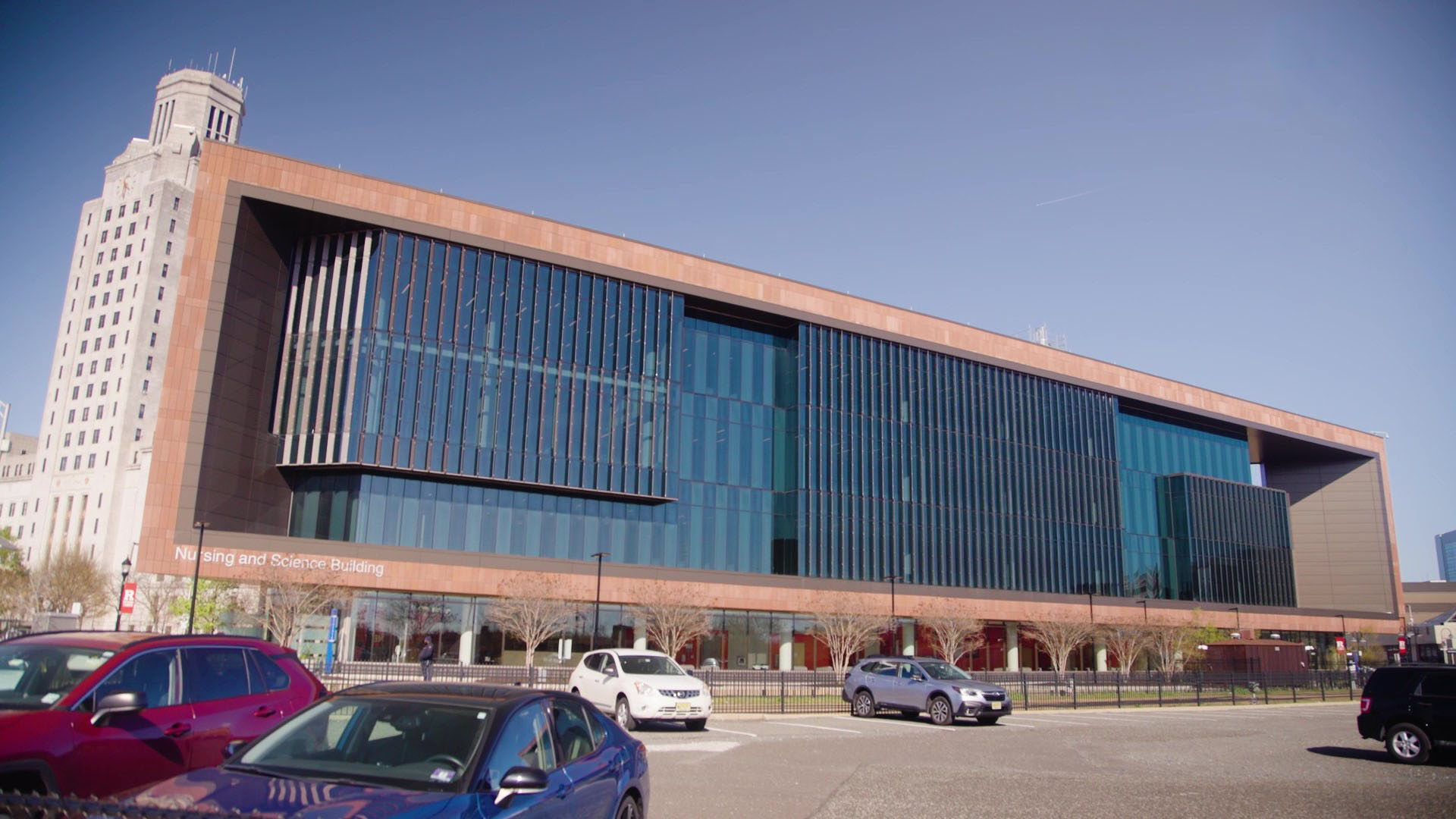

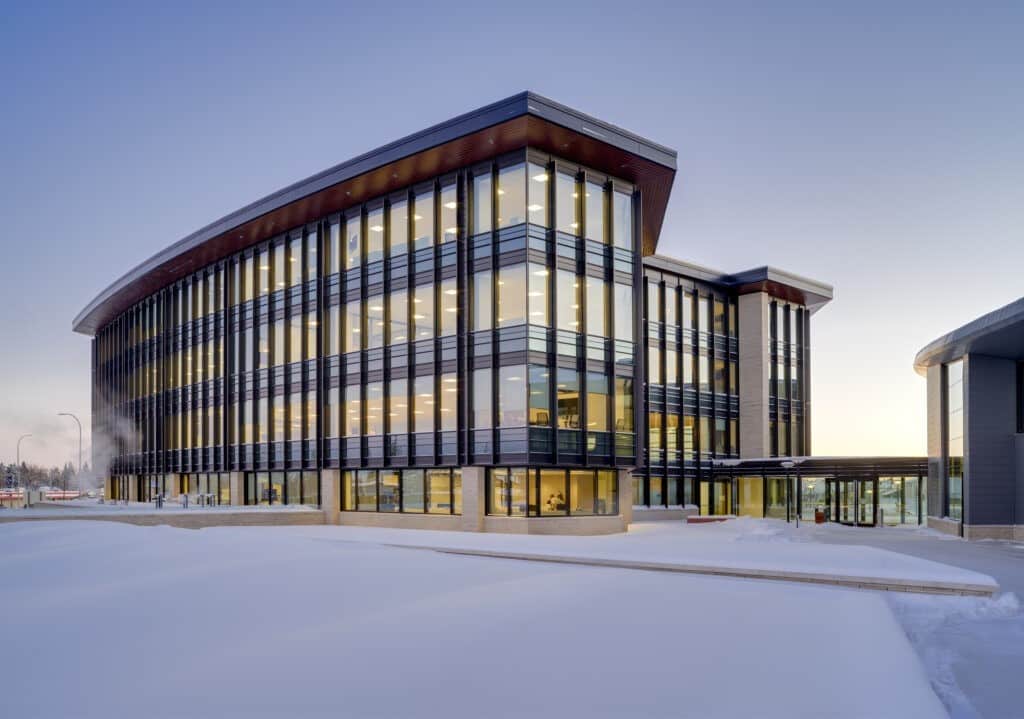

1600UT System™1 Curtain Wall

The 1600UT System™1 Curtain Wall delivers ultra-thermal performance, versatility and reliability. Ideal for low- to mid-rise applications, it utilizes thermal barrier technology to address extreme climactic conditions.

  • 2-1/2″ (63.5mm) sightline
  • 6″ (152.4mm), 7-1/2″ (190.5mm) or 10-1/2″ (266.7mm) system depth with 1” double-pane infill

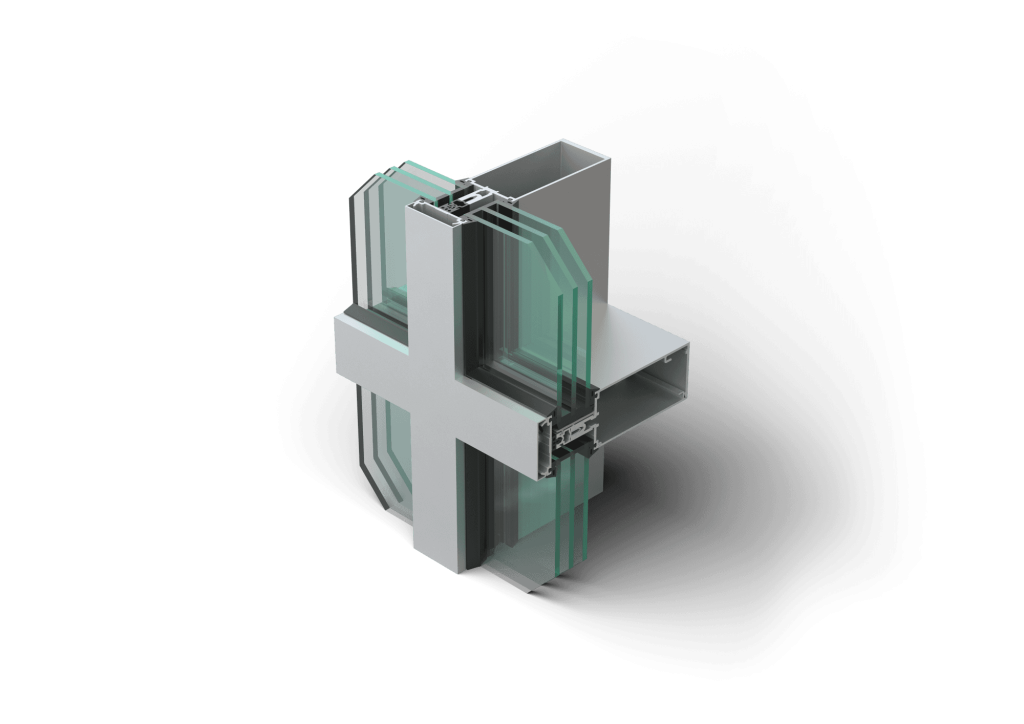

  • 6-3/4″ (171.5mm), 8-1/4″ (209.6mm) or 11-1/4″ (285.8mm) system depth for triple-pane 1-3/4″ (44.5mm) infill
  • Seismic (AAMA 501.4 and 501.6 standards)
  • Blast mitigation, storm shelter (ICC 500)
  • Multiple thermal performance levels resulting from a combination of:
    • 1″(25.4mm) double or 1-3/4″(44.45mm) triple-pane insulating glass units
    • Aluminum or fiberglass pressure plates
  •  Thermal barrier design to ensure high thermal performance without being susceptible to thermal fatigue like other materials
  • Seamless integration with high-performance or standard entrances and window systems
  • Corners and splays available
  • Comprehensively tested to latest high-performance air, water, structural and thermal standards
  • Glass chairs support insulating glass units, enabling larger expanses of glass
  • Pressure equalized system tested with vapor barrier
  • Human Impact tested (AAMA 501.8)

Optional Features

  • Steel reinforcing
  • Rain screen and backpans
  • Deep profile covers and bull nose covers
  • Deep and heavy-weight mullions
  • Profit$Maker® Plus die sets available
  •  Dual-color option

Product Applications

  • Ideal for low- to mid-rise applications where high thermal performance is desired
  • High span applications
  • Integrates with Kawneer Entrances, GLASSvent® UT windows and sun control products

Thermal Technology
