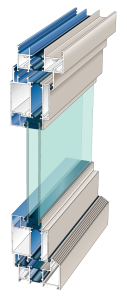

NX-8900 Terrace Doors

NX-8900 Terrace Doors have unmatched energy efficiency and outstanding air and water performance. They feature durable, non-corrosive hardware and are highly versatile, able to accommodate custom field applications.

  • 4″ (101.6mm) sightline
  • 2-3/4″ (69.9mm) depth
  • 3-1/4″ (82.6mm) or 4-5/8″ (117.5mm) frame depth
  • High-thermal performance
  • Exterior balcony application
  • Integral sidelite and transom (French style)
  • Stainless steel hardware
  • Innovative multi-point lock system
  • 3-way adjustable hinges
  • 1″ (25.4mm) insulating glass unit
  • Concealed limit device with door stop
  • Unmatched energy efficiency
  • Outstanding air and water performance
  • Versatility to accommodate custom field applications
  • Durable, non-corrosive hardware
  • Dual-color option

Options

  • Outswing (NX-8910) or inswing (NX-8920)
  • Optional 4-5/8” (117.5mm) equal leg frame
  • Glazing infills up to 1-5/8” (41.3mm)
  • Variety of handle set styles and finishes
  • Exterior and interior muntins
  • Low ADA-compliant sill
  • Kick panel
NX-8900 Terrace Doors Flyer
2 MB
Anodized and Painted Aluminum Extrusions - EPD
765 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
1 MB
Liquid Paint - Color Chart - Permafluor™
350 KB
NX-8900 Terrace Door Guide Specifications - English
NX-8900 Terrace Door Guide Specifications - French
NX-8900 Terrace Door Guide Specifications - Spanish

Download All

Download All
Download All
Door_Curtain_Wall-Inswing-NX-8920-Double_Panel.rfa
Door_Curtain_Wall-Inswing-NX-8920-One_Panel.rfa
Door_Curtain_Wall-Inswing-NX-8920-Sidelite.rfa
Door_Curtain_Wall-Inswing_With_Sidelite-NX-8920-One_Panel.rfa
Door_Curtain_Wall-Inswing_With_Transom-NX-8920-Double_Panel.rfa
Door_Curtain_Wall-Inswing_With_Transom-NX-8920-One_Panel.rfa
Door_Curtain_Wall-Outswing-NX-8910-Double_Panel.rfa
Door_Curtain_Wall-Outswing-NX-8910-One_Panel.rfa
Door_Curtain_Wall-Outswing-NX-8910-Sidelite.rfa
Door_Curtain_Wall-Outswing_With_Sidelite-NX-8910-One_Panel.rfa
Door_Curtain_Wall-Outswing_With_Transom-NX-8910-Double_Panel.rfa
Door_Curtain_Wall-Outswing_With_Transom-NX-8910-One_Panel.rfa

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
