TR 7100 Windows


TR-7100 Windows

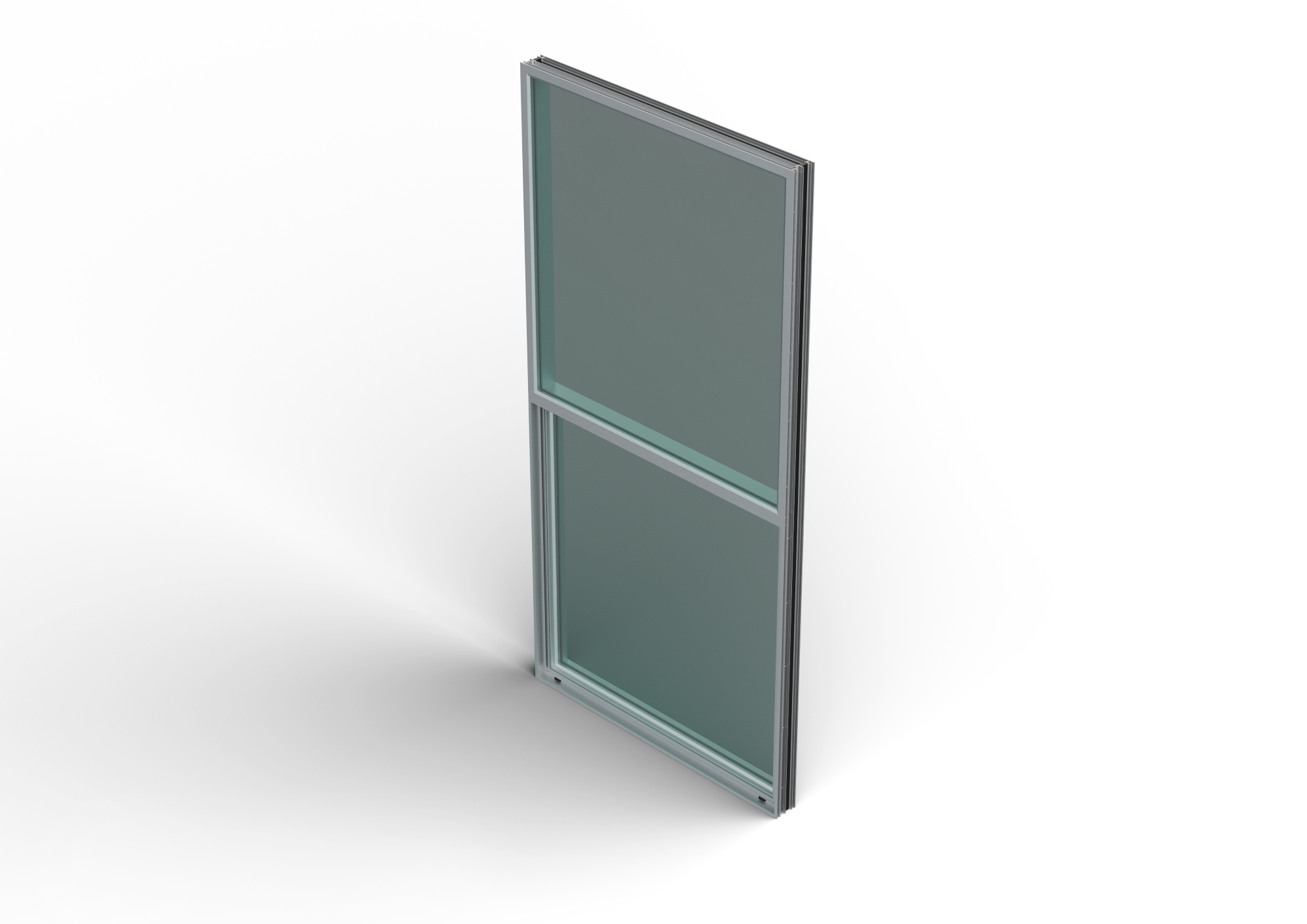

TR-7100 Thermal Windows are built for strength, durability and complex thermal demands. Designed for both beauty and performance, they offer versatility and flexibility combined with superior thermal performance. The TR-7100 Windows are an ideal choice for new construction or retrofit projects.

  • 3-1/4″ (82.6mm) depth
  • Architectural window (AW)
  • Thermal performance
  • Fixed configuration
  • Frame corners are joined for strength with three stainless steel screws
  • Frames are factory sealed to ensure weathertightness
  • Internal weep system controls any water accumulation


  • Panel depths up to 1-1/8″ (28.6mm) are easily accommodated
  • Optional dual glazing permits thermal glazing of polycarbonate
  • Optional TR-7100 offset frame provides appearance of hung window



  • 1″ (25.4mm) insulating glass
  • Interior snap-in glazing bead
  • Internal weep system


  • Curved frame and glazing bead
  • Exterior glazing bead for spandrel glazing
  • Offset frame, to replicate a double hung window
  • Integral mullions (specify sill/left jamb-to-CMR dimension)
  • Dual glazed: maximum 1/4″ (6.35mm) exterior and interior panel
  • Triple glazed: 3/4″ (19.05mm) exterior; interior panel: maximum 1/4″ (6.35mm)
  • Exterior, internal or true muntins
  • Internal blinds

Related Product Approvals

Find out more here.

TR-7100 Architectural Thermal Window - Flyer
2 MB
Product Selection Guide Hurricane Resistant Windows
472 KB
Product Selection Guide Blast Mitigation Windows
186 KB
Anodized and Painted Aluminum Extrusions - EPD
765 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
1 MB
Liquid Paint - Color Chart - Permafluor™
350 KB
TR-7100 Windows (Fixed) (3-1/4") - English

Download All

Download All
Exterior Sills - Sill Clips
Mullions-Mullion Covers
Muntins & Sash Dividers
Preset Panning
Snap Trim & Clips
Subsills-subsill Anchors
Interior Stools
Download All

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products


Search Arconic’s SDS database for safety information on specific materials.
