Inside Glazed Curtain Wall System

Curtain Wall

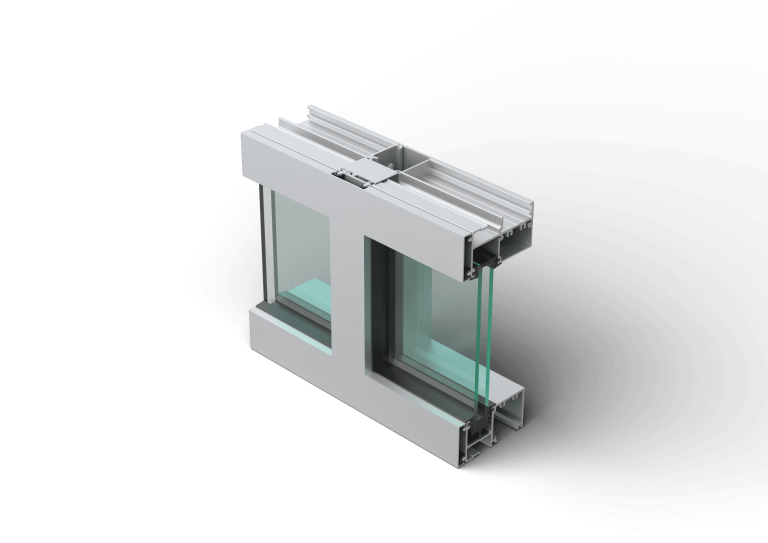

2250 IG (Inside Glazed) Curtain Wall System

Balancing performance and cost, the 2250 IG (Inside Glazed) Curtain Wall System is available in shear block and screw spline fabrication for optimum flexibility, reducing labor and material costs.

  • 2-1/4″ (57.2mm) sightline
  • 4-1/2″ (114.3mm), 6″ (152.4mm) or 7-1/2″ (190.5mm) system depths
  • Thermal performance
  • Structural Silicone Glazed (SSG) options
  • Inside glazed
  • Ribbon window wall application option available
  •  4-1/2″ (114.3mm), 6″ (152.4mm) and 7-1/2″ (190.5mm) system depths for 1” (25.4mm) glazing
  • 5-1/4″ (133.4mm) and 6-3/4″ (171.5mm) system depths with 1/4” (6.4mm) glazing
  • Incidental water management capability
  • Thermally improved
  • Shear block and screw spline construction for easy fabrication
  • Structural Silicone Glazed (SSG) option
  • Integrates with concealed GLASSvent® windows

Optional Features

  • Steel reinforcing
  • Rain screen and backpans
  • Corner mullions
  • Profit$Maker® Plus die sets
  • Integral perimeter caulk leg
  • Pressure plate option for outside glazing requirements
  • Dual-color option

Product Applications

  • Ideal for low- to high-rise applications
  • Integrates with Kawneer entrances and windows
  • Ribbon window wall application option available

Thermal Technology
Find out more here.

Related Product Approvals

Find out more here.
