Trifab 451UT Framing System

Storefront Framing

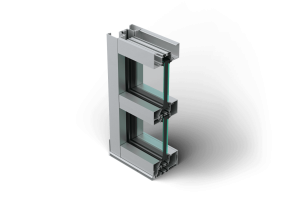

Trifab® 451UT Framing System

The Trifab® 451UT Framing System is engineered for the most demanding thermal performance by employing a “dual” thermal break. A perfect choice for single-span storefront, ribbon window or punched openings, this screw spline fabricated system has center set glass and a pre-glazed option. The Trifab® 451UT Framing System offers a pre-glaze option for the existing center set screw spline assembly application, available on non-thermal, thermal and ultra-thermal frame types. Pre-glaze units can be completely fabricated and glazed in the shop, minimizing job-site costs and enhancing field-installed quality.

  • 2″ (50.8mm) sightline
  • 4-1/2″ (114.3mm) depth
  • Ultra-thermal performance
  • Blast mitigation
  • Center plane glass applications
  • Pre-glazed option (screw spline)
  • Trifab® 451UT framing system is 4-1/2″ deep with a 2″ sightline
  • Center plane glass application
  • Flush glazed from either the inside or outside
  • Screw Spline fabrication
  • Screw Spline pre-glazed option
  • Dual Isolock® lanced and debridged thermal break
  • Infill options up to 1-1/8″ thickness
  • Anodized finishes in four choices
  • Painted finishes in standard and custom choices

Optional Features

  • High performance flashing
  • Acoustical rating per AAMA 1801 and ASTM E 1425
  • Project specific U-factors (see thermal charts in Architectural Detail Manual)
  • Pre-glaze Option Features*
    • Tested solution with installation instructions enables shop fabrication and reduces field labor
    • Vertical mullions with 1/4″ reveal provide uniform aesthetics
    • High-performance sill flashing and clip design reduces installation time
  • Composite end jamb allows for ease of installation of the last bay
  • Trifab® 451/451T/451UT Framing Systems provide the right thermal performance for your project
  • View our pre-glaze option flyer here

*For Trifab® 451/451T/451UT Framing System center set screw spline assembly applications only.

Product Applications

  • Storefront, Ribbon Window or Punched Openings
  • Single span
  • Integrated entrance framing allowing Kawneer standard entrances or other specialty entrances to be incorporated
  • Kawneer standard or GLASSvent® windows are easily incorporated

Thermal Technology

Find out more here.

Blast Resistant

Find out more here.

Related Product Approvals

Find out more here.

Trifab® 451UT Framing System - Architectural Detail Manual
4 MB
Trifab® 451UT Framing System - Flyer
2 MB
Storefront Framing Product Selection Guide
571 KB
Trifab® VersaGlaze® 451 Framing Systems Pre-Glaze Option Flyer
316 KB
Trifab® 451UT Framing System - Product Green Guide
244 KB
Trifab® Framing Systems and Storefront Framing Systems - EPD
1 MB
Trifab® 451UT and 601UT Framing Systems - DECLARE Label
880 KB
Trifab® 451UT and 601UT Framing Systems - MTS
291 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
794 KB
Liquid Paint - Color Chart - Permafluor™
350 KB
Powder Paint - Color Charts - Permacoat™
127 KB
Trifab® 451UT Framing System - English
Trifab® 451UT Framing System - French
Trifab® 451UT Framing System - Spanish US

Download All
Typical Framing Details (Outside Glazed)
Optional Framing Details (Outside Glazed) -"Glass Stops Up"
Typical Framing Details (Inside Glazed)
Pre-Glazed Option Details - (Outside Glazed)
Pre-Glazed Option Details - (Outside Glazed) - "Glass Stops Up"
Pre-Glazed Option Details - (Inside Glazed)
Pre-Glazed Optional Vertical Details
Typical Corner Details
Head and Jamb Compensating Details
GLASSvent® UT Windows Details (Outside Glazed)
GLASSvent® UT Windows Details (Outside Glazed) -"Glass Stops Up"
GLASSvent® UT Windows Details (Inside Glazed)
8225TL Windows Details (Outside Glazed)
8225TL Windows Details (Outside Glazed) -"Glass Stops Up"
8225TL Windows Details (Inside Glazed)
Stool Trims, Brake Metal Adaptors and Splice Sleeves
Download All
Trifab™ 451UT Framing System
Trifab™ 451UT Framing System
